Is a roof structural
The roofing structure is essentially the frame that your roof will be constructed on. The structure is a series of trusses, beams and rafters that give the roof its shape and that the roof sheathing is laid upon.
Are rafters as strong as trusses?
Once in place, rafters use up more wood, so they weigh more, but trusses are stronger because they are more efficient and have the capacity to produce maximum strength using fewer materials in the end.

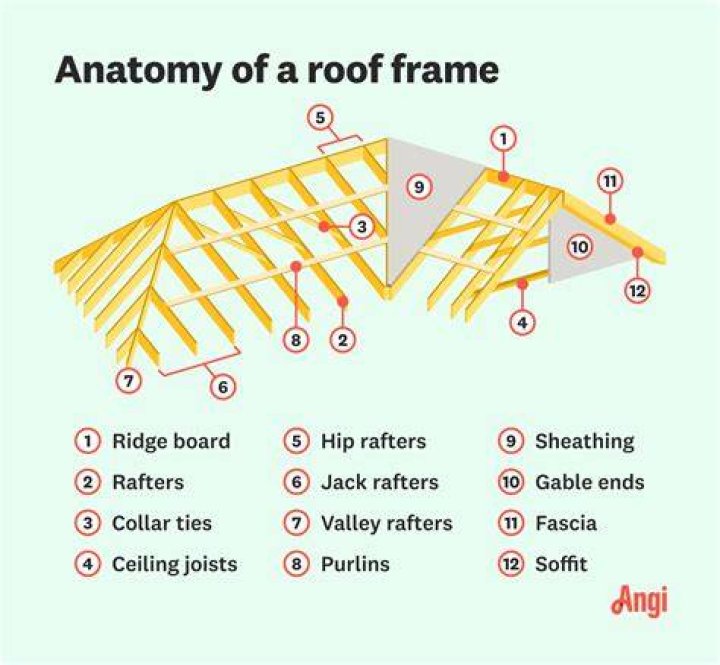

What are the structural components of a roof?
- Rafters. One big aspect of a roof’s frame is the rafters. …
- Purlins. Another large aspect of a roof comes from purlins—additional support for the roof load. …
- Pitch. You will also notice the roof’s pitch right from the get-go. …
- Underlayment. …
- Decking. …
- Shingles. …
- Flashing. …
- Drip Edge.
Do rafters support the roof?
Roof Framing: collar ties, rafter ties, tension beams & structural ridge beams: some of these can support the roof and prevent ridge sagging and wall spreading.
What is classed as a structure?
Structure is defined as “anything constructed or erected with a fixed location on the ground. Among other things, structures include buildings, mobile homes (‘manufactured homes’), walls, fences, billboards, and poster panels.”
Can you use i joists for rafters?
Wood I-joists are used as a framing material primarily in floors, but may also be used as roof rafters where long length and high load capacity are required. They are used as an alternative to sawn lumber.
What are roof rafters?
A rafter is defined as one of a series of sloped structural pieces (typically wooden beams) that extend from the hip or ridge to eave, wall plate, or downslope perimeter. They’re designed to support the roof deck, shingles, and everything else that goes with the roof. Rafters are the traditional way to frame a roof.
Are rafters more expensive than trusses?
Expensive – While rafters take less time to build and install, the wood and labor costs are more expensive than a roof truss system. Longer construction – Since rafters are built on-site and don’t require any prior planning, they are more time-consuming, sometimes taking up to a week to complete.
What is difference between rafters and trusses?
Trusses and rafters are both assembled ahead of being installed onto the roof. Trusses are assembled in a factory using pre-engineered structures and joints. … Rafters contain two main outer beams which support the roof structure. On the other hand, trusses come with multiple beams which add more support.
Are roof rafters structural?
A rafter is one of a series of sloped structural members such as wooden beams that extend from the ridge or hip to the wall plate, downslope perimeter or eave, and that are designed to support the roof shingles, roof deck and its associated loads.
Article first time published on
How are rafters attached?
All rafters are attached with framing nails, usually 10d or 12d, driven in with a hammer, but specific installations vary according to the type of roof. Some rafters have metal plates at attachment points for extra support. … Nail each rafter to the ridge board with the plumb cuts flush against the sides of the ridge.
Are roof joists structural?
Roof beams may support the weight of the floor above or roof, but they are also a vital component in structural integrity. Roof beams attach to walls and stop them from spreading or leaning in. This image below shows metal beams supporting many timber joists.
What part of a roof is the eaves?
The eaves of a roof is its lowest horizontal edge. The eaves may terminate flush with the outer face of the wall, in which case it is known as a ‘flush eaves’. It may also project out beyond the external wall, with a soffit below.
What are four types of roof?
- Gable roof. The term ‘gable’ refers to the triangle spot that is formed when the two pitched areas of the roof meet. …
- Hip. Hip roof is slightly more difficult to build and usually has 4 sides. …
- Dutch. …
- Mansard roof. …
- Flat roof. …
- Shed roof. …
- Butterfly roof. …
- Gambrel roof.
What is the wood under a roof called?
Also known as the wood sheathing, this is the base on which everything else is laid on. It’s essentially the foundation of the roof. This is typically made with OSB or oriented strand board or plywood that’s attached with nails onto the rafters.
What are 3 types of structures?
There are three basic types of structures: shell structures, frame structures and solid structures. But some structures are a combination.
What qualifies a structure as a house?
A house is a single-unit residential building, which may range in complexity from a rudimentary hut to a complex structure of wood, masonry, concrete or other material, outfitted with plumbing, electrical, and heating, ventilation, and air conditioning systems. … Some large houses in North America have a recreation room.
Is a fence considered a structure?
When a fence is not considered a structure, it is usually regulated as an encroachment or projection into yard spaces. When it is considered a structure, it is usually regulated as an accessory structure.
Where are the rafters in a house?
In a sloped roof, common rafters run from the peak of the roof down to the top of the exterior walls of the building. At the peak, the rafters are nailed to a ridge board, and at the top of the wall, rafters are attached to the horizontal top plate of the wall framing.
What's the difference between joist and rafters?
The main difference between Joist and Rafter is that the Joist is a horizontal structural element transferring load from flooring to beams, typically running perpendicular to beams and Rafter is a structural members in architecture.
How are rafters made?
Rafters are the traditional means of framing a roof. Building a roof frame with rafters is known as stick framing. This means that each rafter is built on the job site using dimensional lumber. Every piece is measured, cut, and fastened together to form the rafter.
How long can roof rafters be?
Maximum Span (ft – in)Nominal Size (inches)Rafter Spacing, Center to Center, OC (inches)Lumber Grade2 x 81221′ – 7”1619′ – 7”2417′
Do I joists need bridging?
Bridging is sometimes required in floors or roofs when solid-sawn lumber joists are used. This addition provides lateral support to twisted joists to help maintain a vertical orientation. … Our code report (ICC ESR-1153) specifically states that bridging is not required for floor and roof TJI joist applications.
What are wood I beams called?
I-joists are strong, lightweight, “I” shaped engineered wood structural members that meet demanding performance standards. I-joists are comprised of top and bottom flanges, which resist bending, united with webs, which provide outstanding shear resistance.
What are 3 types of rafters?
There are basically seven different types of roof rafter designs used to create a roof: common, hip, hip jack, valley, valley jack, cripple jack and flying hip.
What are roof beams?
“Roof beams” is a term used to describe the relatively large wood members (load-bearing beams) that support a roof structure. … Their homes are typically the ones that have exposed roof beams projecting out to, or beyond, the roof edge framing.
What are the beams in the attic called?
The purlins are the large beams perpendicular to the rafters; from this shot, it appears that there are three purlins on either side of the roof. The sheathing boards are sometimes called the roof deck and are painted white.
Are roof trusses load bearing?
Most exterior walls are load bearing, but not all. It all comes down to where the roof trusses/rafters and floor joists/trusses are bearing.
What is the most common roof pitch?
Conventional slope roofs are most common with residential roofs. This means the slope has a pitch between 4/12 and 9/12 on most homes. Roofs with a pitch exceeding 9/12 are called steep slope roofs.
What is a disadvantage of a typical roof constructed with roof trusses?
The biggest downside to roof trusses is that many types of trusses do not leave much space for a usable attic. There are certain designs that will create a small space, but this space is often half the span of the truss. … Roof trusses, on the other hand, can be customized but are often limited to less complex designs.
How are rafters supported?
In homes with flat ceilings and an attic space, the bottoms of opposing rafters should be fastened together with ceiling joists, which form “rafter ties.” When rafters have been installed perpendicular to the ceiling joists, rafter ties typically rest on top of the ceiling joists.
