What is aligning DNA

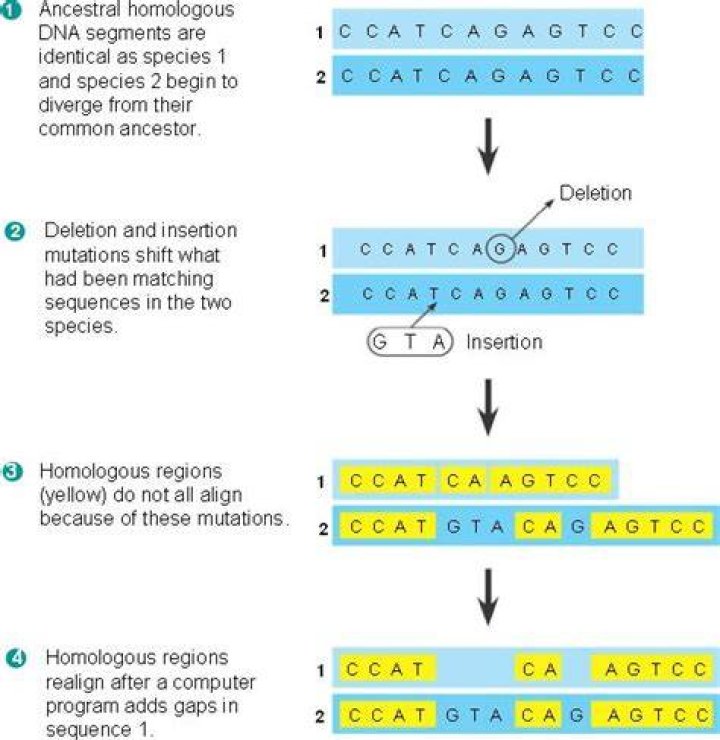

Sequence alignment is a way of arranging protein (or DNA) sequences to identify regions of similarity that may be a consequence of evolutionary relationships between the sequences.

How do you do sequence alignment?

1. Click on the Align link in the header bar to align two or more protein sequences with the Clustal Omega program.
2. Enter either protein sequences in FASTA format or UniProt identifiers into the form field (Figure 39)
3. Click the ‘Run Align’ button.

How long does sequence alignment take?

For instance, the sequencing program MUSCLE can usually handle large data sets with a premium on accuracy. For some perspective, I can usually align ~750 sequences of 1000 nucleotides each in about an hour using MUSCLE. For aligning a large number of sequences, you must have sufficient computer memory and storage.

What is the significance of sequence alignment?

Sequence alignments are useful in bioinformatics for identifying sequence similarity, producing phylogenetic trees, and developing homology models of protein structures. However, the biological relevance of sequence alignments is not always clear.

How does multiple sequence alignment work?

In multiple sequence alignment (MSA) we try to align three or more related sequences so as to achieve maximal matching between them. The goal of MSA is to arrange a set of sequences in such a way that as many characters from each sequence are matched according to some scoring function.

How do you blast multiple protein sequences?

1. Create or Open a Collection of Files. Add sequence files to a new or existing collection. …
2. Select the Sequence Files to BLAST. Select multiple files in the Collection list using Shift-click or Ctrl-click (Windows) / Cmd-click (macOS). …
3. Initiate the BLAST Search. …
4. Perform BLAST in the Web Browser.

What do the symbols * mean in a sequence alignment?

An * (asterisk) indicates positions which have a single, fully conserved residue. A : (colon) indicates conservation between groups of strongly similar properties – scoring > 0.5 in the Gonnet PAM 250 matrix.

What are the types of sequence alignment?

Types of Sequence Alignment Sequence Alignment is of two types, namely:  Global Alignment  Local Alignment GLOBAL ALIGNMENT: Global alignment program is based on Needleman-Wunsch algorithm In global alignment, two sequences to be aligned are assumed to be generally similar over their entire length.

Why do you need to align the sequences before building the tree?

The sequences alignment reveal which positions are conserved from the ancestor sequence. ❚ The progressive multiple alignment of a group of sequences, first aligns the most similar pair. ❚ Then it adds the more distant pairs.

What are three things that can go wrong when generating a MSA?

We consider that there are at least three major causes of MSA errors: (i) discrepancies between the score and the true likelihood of a MSA, (ii) inadequate exploration of the MSA space, and (iii) the stochastic nature of sequence evolutionary processes.

Article first time published on

What does asterisk mean in clustal?

An * (asterisk) indicates positions which have a single, fully conserved residue. A : (colon) indicates conservation between groups of strongly similar properties as below – roughly equivalent to scoring > 0.5 in the Gonnet PAM 250 matrix: STA.

What does MSA results mean?

The scores shown in a phylogenetic tree (or dendrogram) produced as the output of a Multiple Sequence Alignment (MSA), correspond to a sequence distance measure. … Generally speaking, the way most MSA algorithms work is that each pair of input sequences is aligned, and used to compute the pairwise identity of the pair.

What does colon mean in clustal?

SymbolDefinitionMeaning:colonconservation between groups of strongly similar properties with a score greater than .5 on the PAM 250 matrix.periodconservation between groups of weakly similar properties with a score less than or equal to .5 on the PAM 250 matrix

How do I align my SnapGene?

In order to align sequences in SnapGene you should open your sequence and then select “Tools”-”Align Multiple Sequences” in the main menu (Figure 3.4. 10.1). Alternatively, press the “Show Alignment” button from the main toolbar (Figure 3.4.

How do you align DNA sequences in SnapGene?

Select “Align imported sequences” then click Align to browse to and select sequences for alignment. Select “Align copied sequence” the click Align to align a sequence that has been copied to the clipboard. Select “Align Open sequences:” then click Align to align sequence files that are already open in SnapGene.

How do you make a primer for PCR?

1. Aim for the GC content to be between 40 and 60% with the 3′ of a primer ending in G or C to promote binding. …
2. A good length for PCR primers is generally around 18-30 bases. …
3. Try to make the melting temperature (Tm) of the primers between 65°C and 75°C, and within 5°C of each other.

What is an alignment in BLAST?

1.2. A BLAST alignment consists of a pair of sequences, in which every letter in one sequence is paired with, or “aligned to,” exactly one letter or a gap in the other. The alignment score is computed by assigning a value to each aligned pair of letters and then summing these values over the length of the alignment.

Can I BLAST multiple sequences at once?

THE NCBI WEB BLAST INTERFACE Please note that multiple query sequences are allowed, but be sure to include the list of identifiers (accession or gi numbers) as one per line or the group of FASTA sequences with each beginning on a new line and starting with the greater-than sign (“>”).

Does BLAST do multiple sequence alignment?

No. In a multiple alignment, you supply multiple sequences to be aligned. In BLAST, you supply one or more query sequences and the best matches for each in turn are discovered using a fast local alignment algorithm. Hence the name: Basic Local Alignment Search Tool – BLAST.

Why is phylogenetic analysis important?

Phylogenetics is important because it enriches our understanding of how genes, genomes, species (and molecular sequences more generally) evolve.

Why do we do phylogenetic analysis?

Phylogenetic analysis provides an in-depth understanding of how species evolve through genetic changes. Using phylogenetics, scientists can evaluate the path that connects a present-day organism with its ancestral origin, as well as can predict the genetic divergence that may occur in the future.

Why is DNA sequence analysis considered more reliable data than morphology?

Phylogenetic trees reconstructed from molecular sequences are often considered more reliable than those reconstructed from morphological characters, in part because convergent evolution, which confounds phylogenetic reconstruction, is believed to be rarer for molecular sequences than for morphologies.

What is alignment matrix?

A course alignment matrix is a tool to help align instruction with desired goals and student learning outcomes. It can also be used to explore what is taught and how. The matrix: Documents what is taught and when. Reveals gaps in the curriculum.

Which alignment method is most suited to align closely related sequences?

Any two sequences can be locally aligned as local alignment finds stretches of sequences with high level of matches without considering the alignment of rest of the sequence regions. Suitable for aligning two closely related sequences.

What does mean clustal Omega?

Clustal Omega is a multiple sequence alignment program for aligning three or more sequences together in a computationally efficient and accurate manner. It produces biologically meaningful multiple sequence alignments of divergent sequences.

What's the meaning of in the markup line of amino acid sequence alignment?

The markup line is the line commonly placed between a pairwise alignment or at the bottom of alignments of 3 or more sequences that shows where sequences are mismatched, gapped, identical or similar. In general the markup line uses a space for a mismatch or a gap, ‘.

How do you interpret the Clustal Omega phylogenetic tree?

The heuristic used in Clustal Omega is based on phylogenetic analysis. First, a pairwise distance matrix for all the sequences to be aligned is generated, and a guide tree is created using the neighbor-joining algorithm. Then, each of the most closely related pairs of sequences are aligned to each other.
